BME280 T/H I2C Humidity Temperature Sensor Pressure Sensor For Ambient Temperature

ShenzhenYijiajie Electronic Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment

BME280 T/H I2C Humidity Temperature Sensor Pressure Sensor For Ambient Temperature

  • 1
  • 2

Brand Name : Bosch

Model Number : BME280

Place of Origin : Germany

MOQ : 5

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram, L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 1501/pcs/pre

Delivery Time : 3-5work days

Packaging Details : In tray

interface type : I2C, SPI

Operating power supply current : 500 nA

Supply voltage - minimum : 1.7 V

Supply voltage - Max : 3.6 V

Minimum operating temperature : - 40 C

Maximum operating temperature : + 85 C

Contact Now

Product Description:

BME280 T/H sensor measures air pressure, humidity, and ambient temperature

Features:

Bosch BME280 Integrated Environmental Unit (BME280) measures air pressure, humidity, and ambient temperature

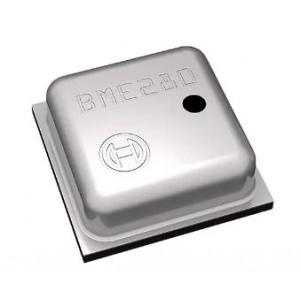

Bosch's BME280 is an integrated environmental sensor developed specifically to meet the critical design requirements of small size and low power consumption for mobile applications. The device combines high-linearity and high-precision pressure, humidity, and temperature sensors in A 2.5 x 2.5 x 0.93 mm³ 8-pin, metal-capped LGA package designed for low current consumption (3.6 µA at 1 Hz), long-term stability, and high EMC robustness.

With extremely fast response times, humidity sensors can support the performance and precision requirements of emerging applications such as context awareness over a wide temperature range. The pressure sensor is an absolute pressure sensor, which has extremely high precision, high resolution and very low noise. The integrated temperature sensor is optimized for extremely low noise and high resolution. The device is mainly used for temperature compensation of pressure and humidity sensors and can also be used to assess ambient temperature. The BME280 supports a complete range of operating modes to flexibly optimize device power consumption, resolution, and filter performance.

The Bosch Sensortec BME280 plugboard is a PCB equipped with BME280 pressure and humidity sensors. The device allows easy access to the sensor pin through a simple socket. All Bosch Sensortec sensor plugboards have the same substrate surface, and these devices can be plugged into advanced development tools such as Bosch Sensortec development boards. Of course, the BME280 socket board can also be used in the customer's own scheme.

BOSH Temperature and humidity sensor BME280 Features:

Relative humidity

Measuring relative humidity with fast response time

pressure

Measure air pressure and altitude

The temperature

Measuring the ambient Temperature

BOSH Temperature and humidity sensor BME280 Applications:

Situational awareness, such as skin detection and indoor environment change detection

Fitness monitoring/Health

Warnings about dry or high temperature conditions

Measured volume and airflow

Automatic home control

HVAC (HVAC)

The Internet of things (IoT)

GPS enhancements such as first positioning time improvement, dead reckoning, and slope detection

Indoor navigation, such as floor change detection or elevator detection

Outdoor navigation, such as leisure and sports applications

The weather forecast

Vertical speed indicator (ascending/descending speed)

Specifications:

Product categories A humidity sensor is installed on the board
RoHS is
RH range 0 % to 100 %
Accuracy of RH + / - 3%
Install the style SMD/SMT
output type Digital

BME280 T/H I2C Humidity Temperature Sensor Pressure Sensor For Ambient Temperature
